low pressure drop and 100% watertight, low torque.

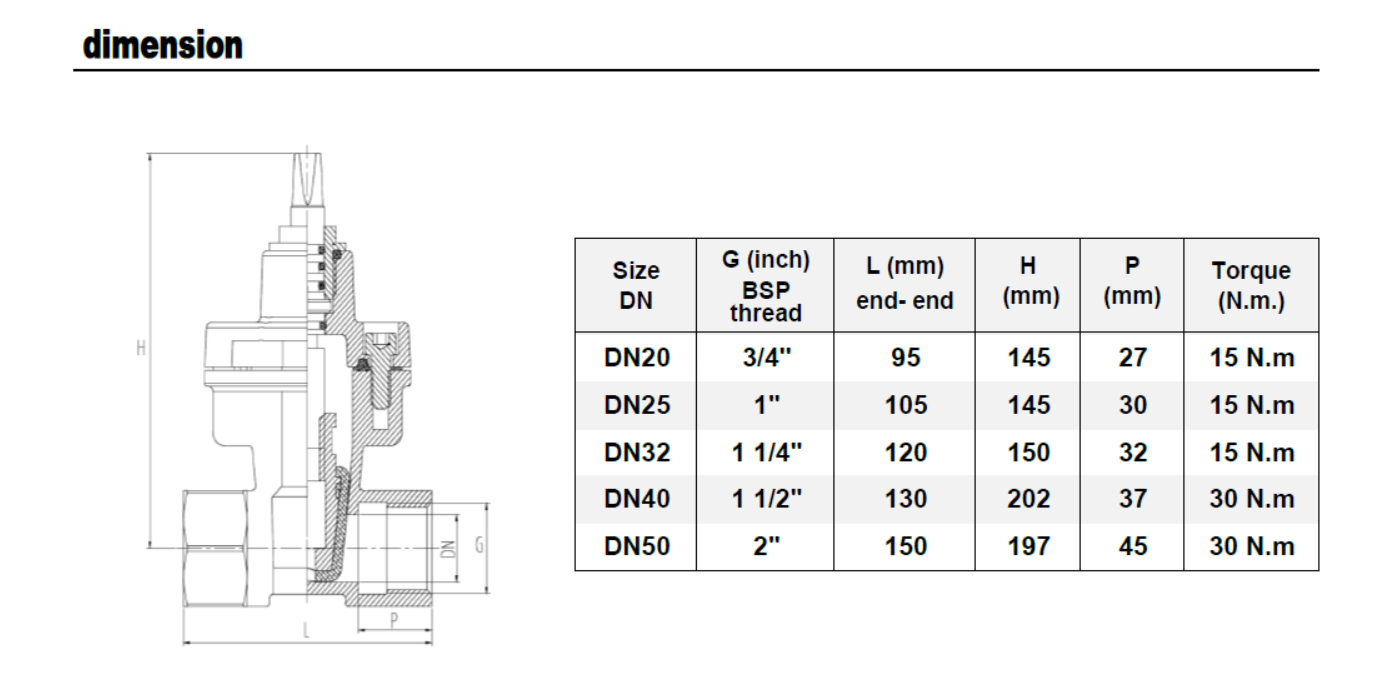

size range: DN20, DN25, DN32, DN40, DN50
wedge core: brass for DN20-32, DI for DN40-50

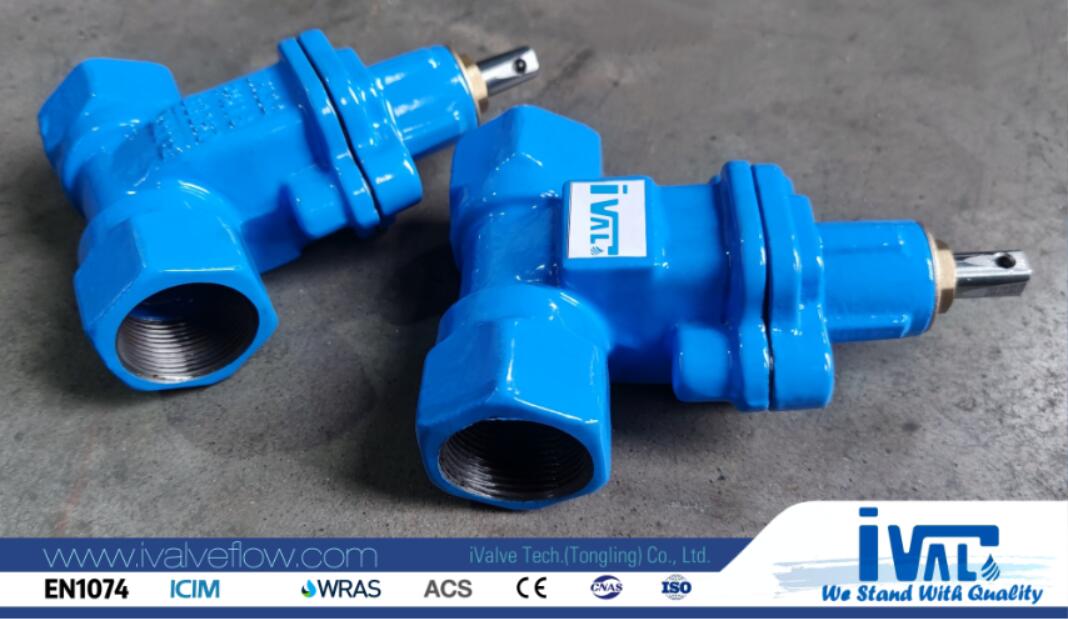

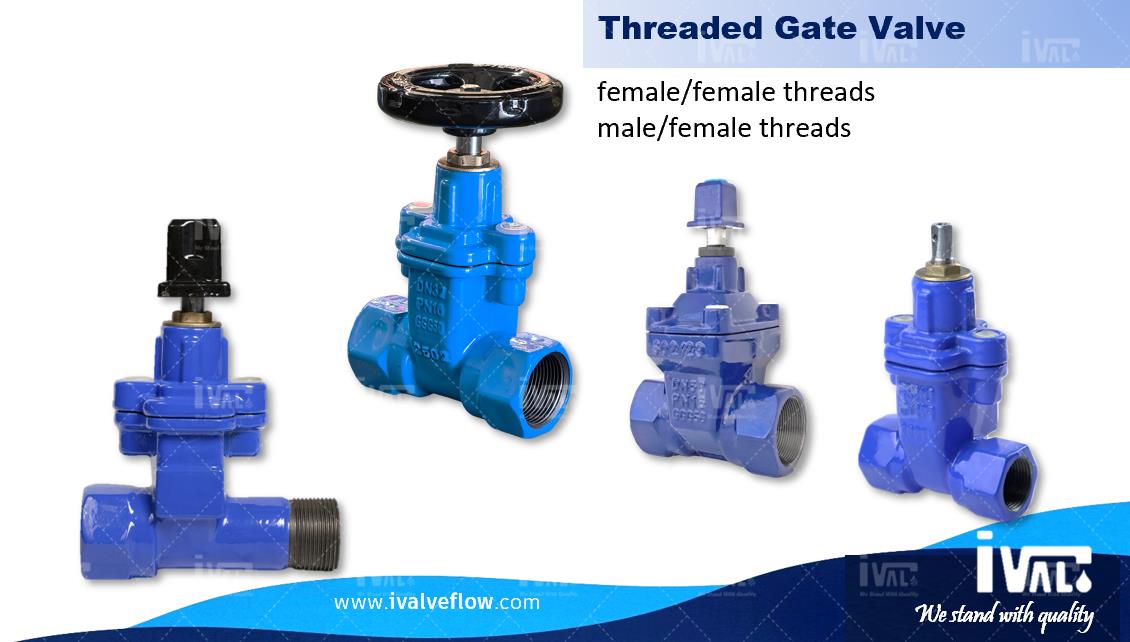

? Threaded connection, BSPP, BSPT, NPT
? 100% sealing test.
? 100% tightness.?
? Bi-directional flow.
? Low pressure drop.?
? Detachable in load.?
? Screws protected against external dirts.?
? WRAS approved for potable water upon request.?
? ? ? ? ? ? ??? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?? ?
? Hydraulic tests according to EN-12266-1, Class A
? Designed to EN1074-2
??BSP threads to EN10226/1 or EN ISO 228-1 G thread
??NPT threads upon request

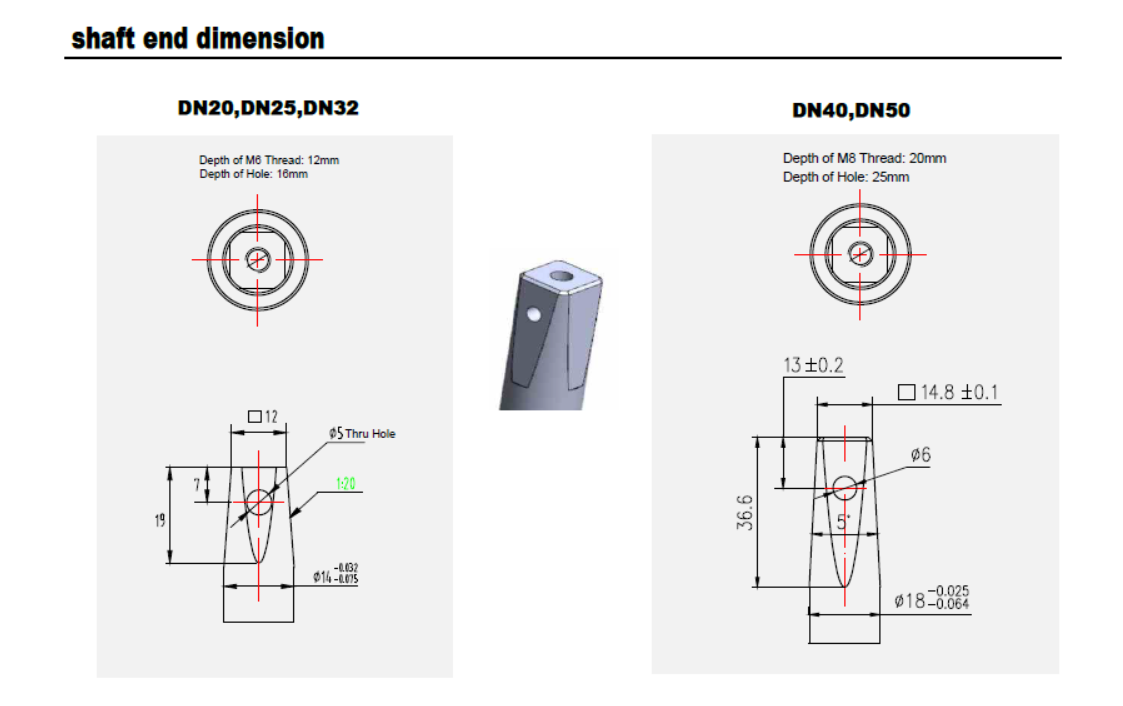

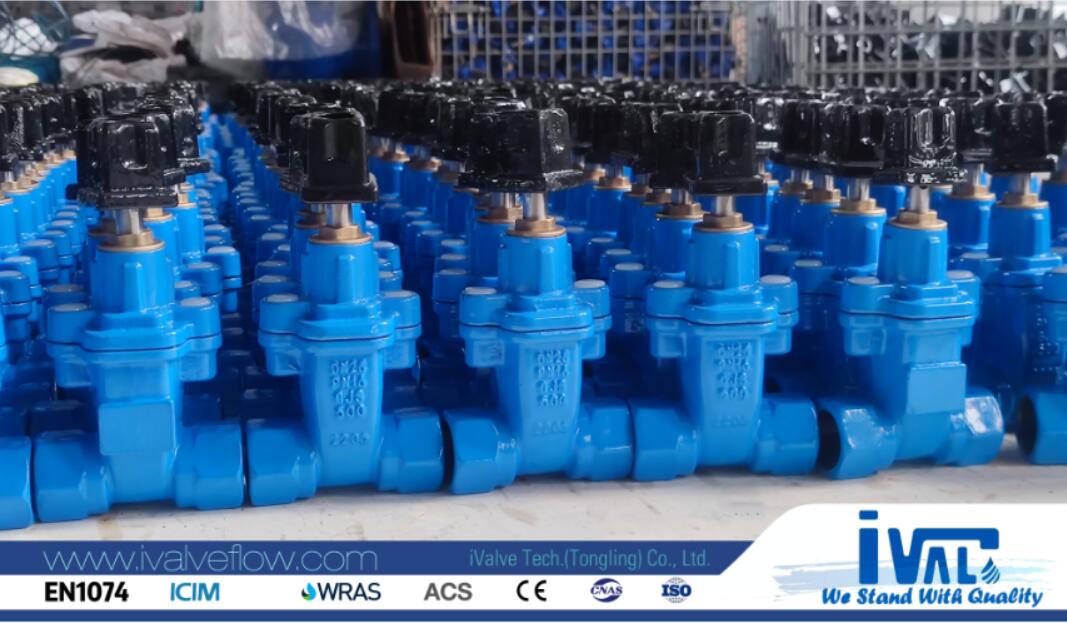

??barestem? ???Square cap? ???Handwheel? ???extension spindle? ? ??T-key
?
