Description

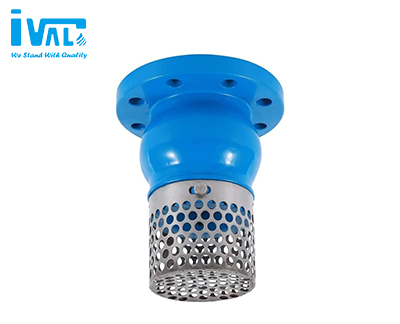

The foot valve is a kind of check valve. It is a valve used to prevent the medium in the pipeline from flowing back. The foot valve is opened when the medium flows downstream, and the foot valve is automatically closed when the medium flows backward. The foot valve is equipped with multiple water inlets on the bonnet, and is equipped with a screen to reduce the inflow of debris, which are not easy to be blocked.
Standards
? Size range: DN50 - DN300
? Connection Ends: EN 1092-2,?PN10/16
? Nominal Pressure: PN10/16
? Temperature Range: 0℃ - 80℃
? Coating: Fusion bonded epoxy powder coating with min 250 microns thickness inside and outside
