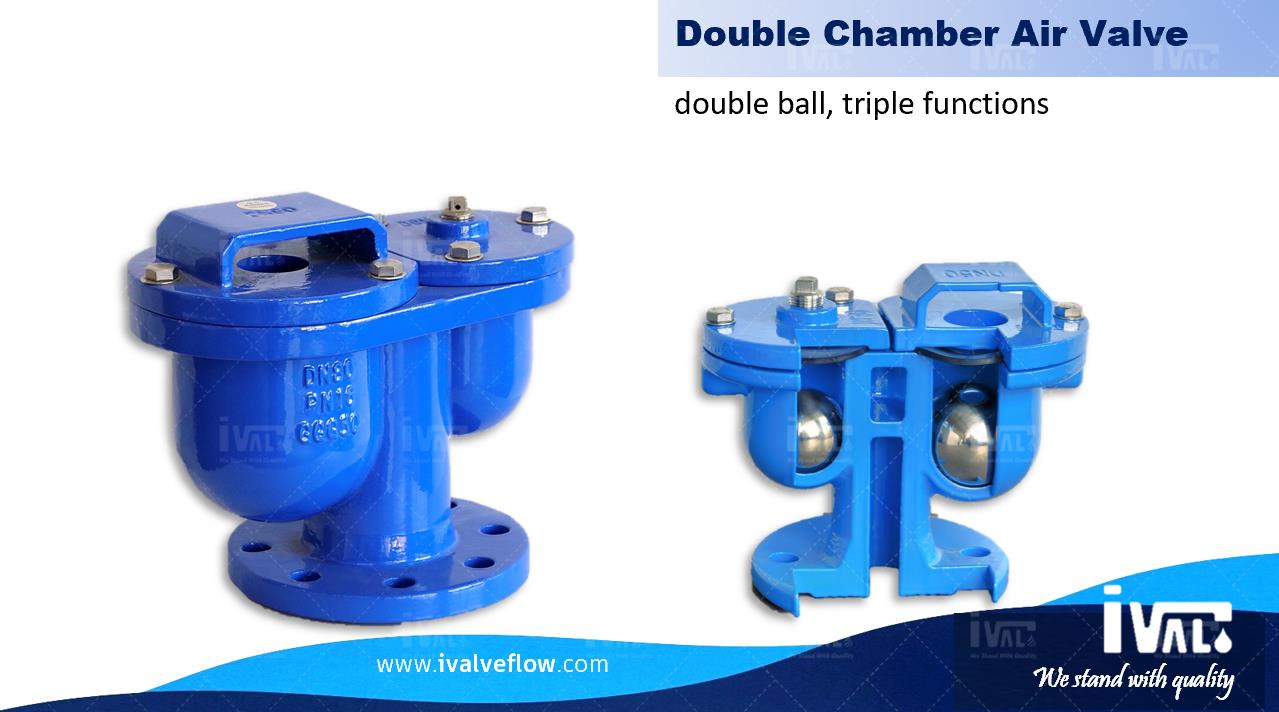

Double Orifice Air Valve
? discharge large air flow from water pipeline
? admit large air flow into water pipeline
? purge entrapped air from pipeline under pressure
Features:
? Flow Media – Clean Water , air
? Applications – Water systems, firefighting and irrigation system
? Little maintenance
? Effective corrosion protection
? Bottom rubber buffer for collision prevention
? Fully expoxy prainting coated inside and outside 250μm
??It can eliminate the gas in the pipeline, reduce the resistance and save energy.
? When the pipeline is under negative pressure,the product can automatically suck in air to prevent the pipeline from breaking.?

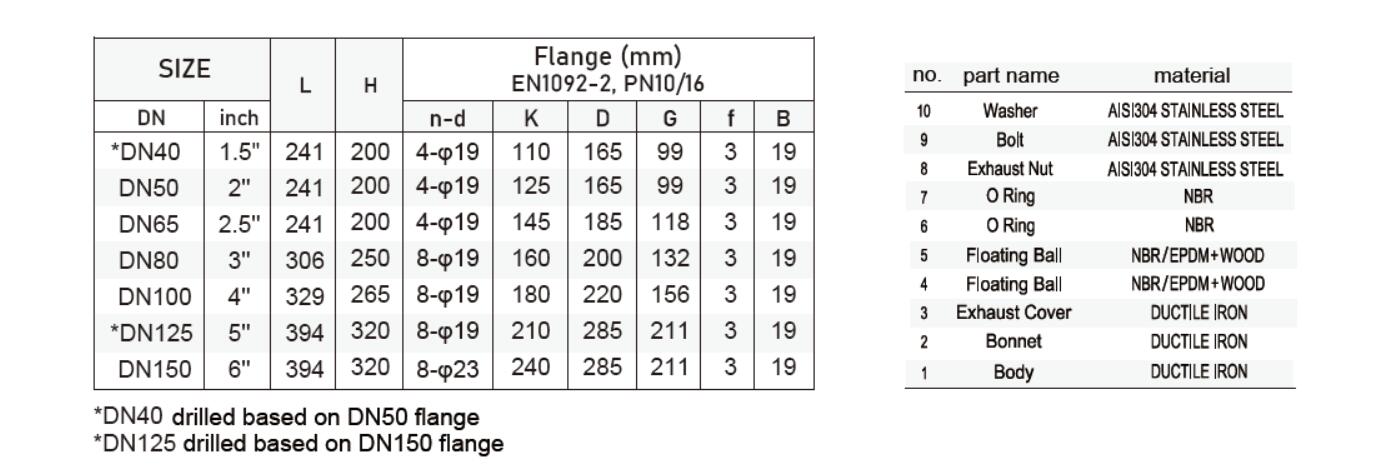

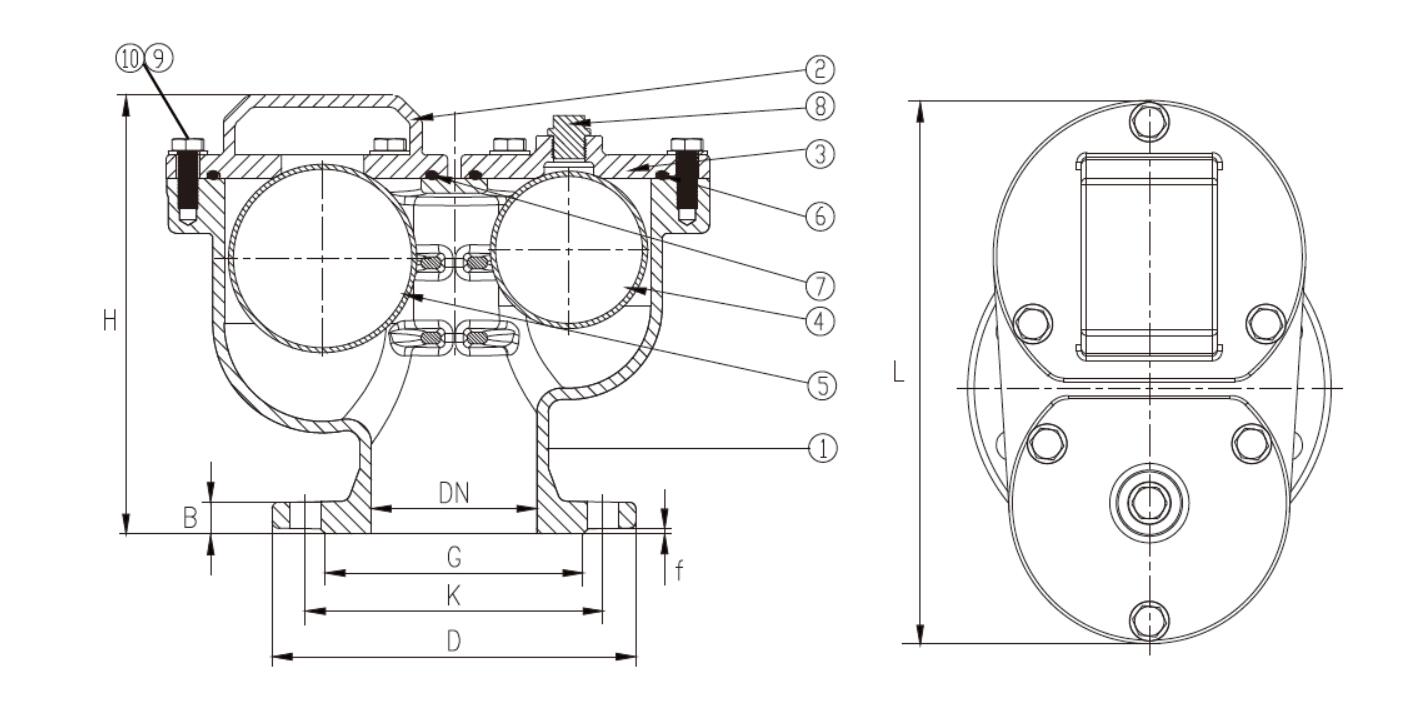

Technical Data
