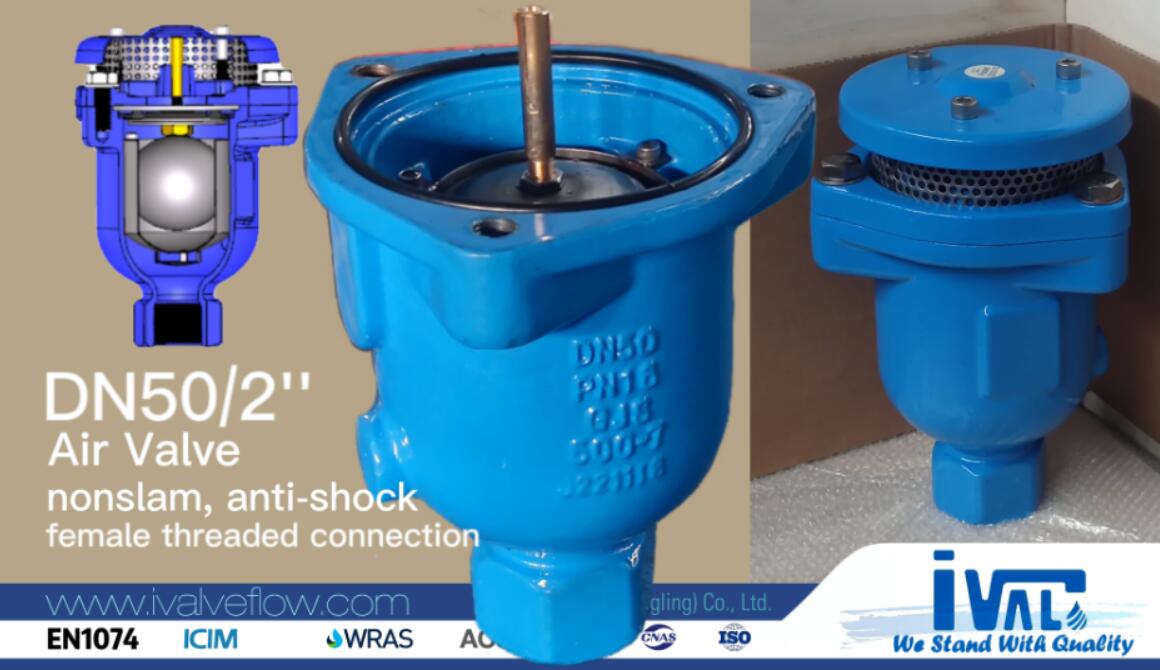

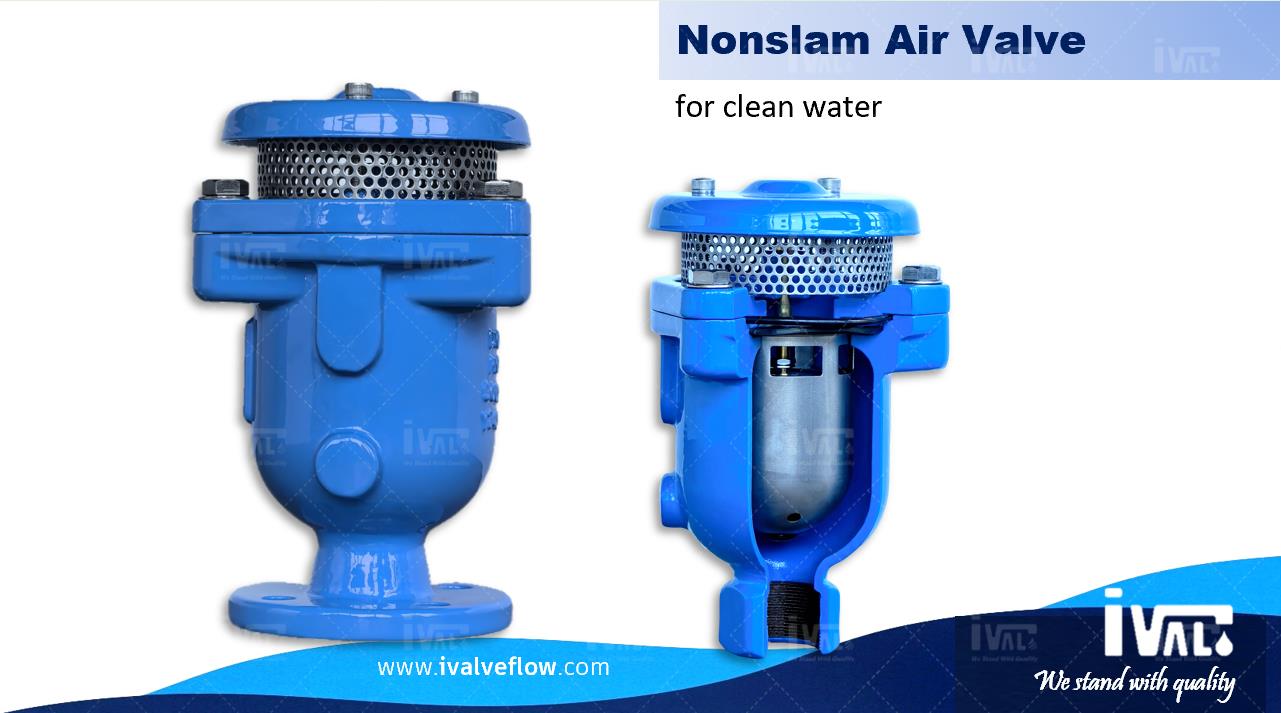

Combination Air Release Valve - Triple Functions /?Anti-shock / nonslam?
self-operating float type and can be fitted to any peak on a pipeline, capable of fulfilling the venting requirement of the pipeline and release any air or gas under pressure accumulated in the pipe system automatically.

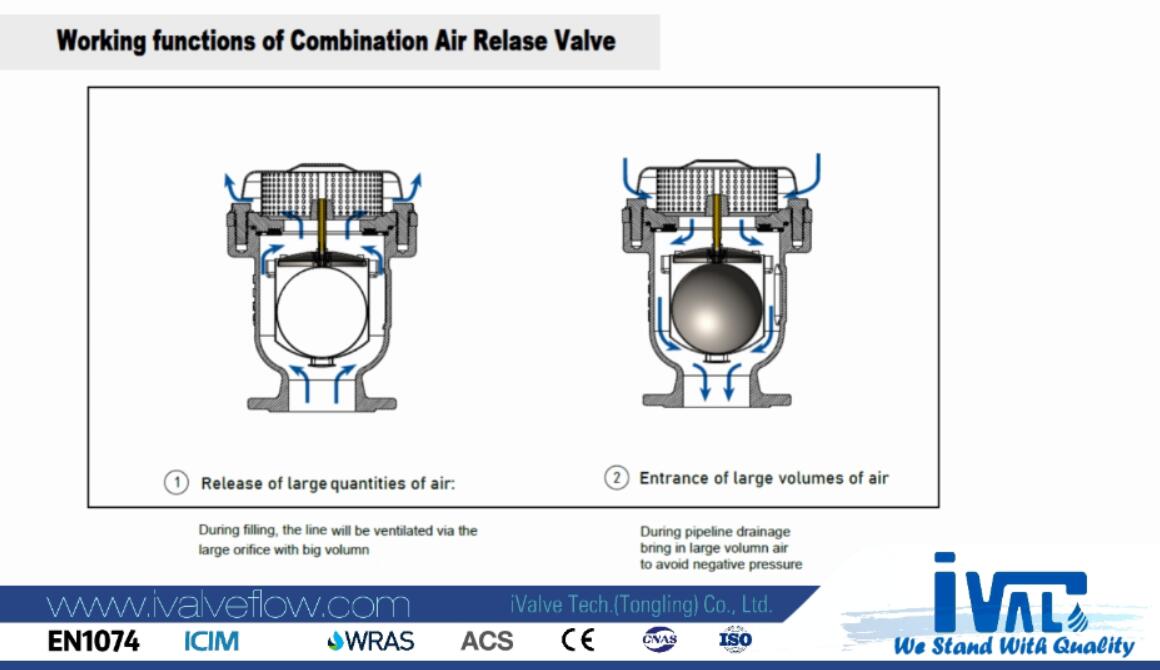

? discharge large air flow from water pipeline
? admit large air flow into water pipeline

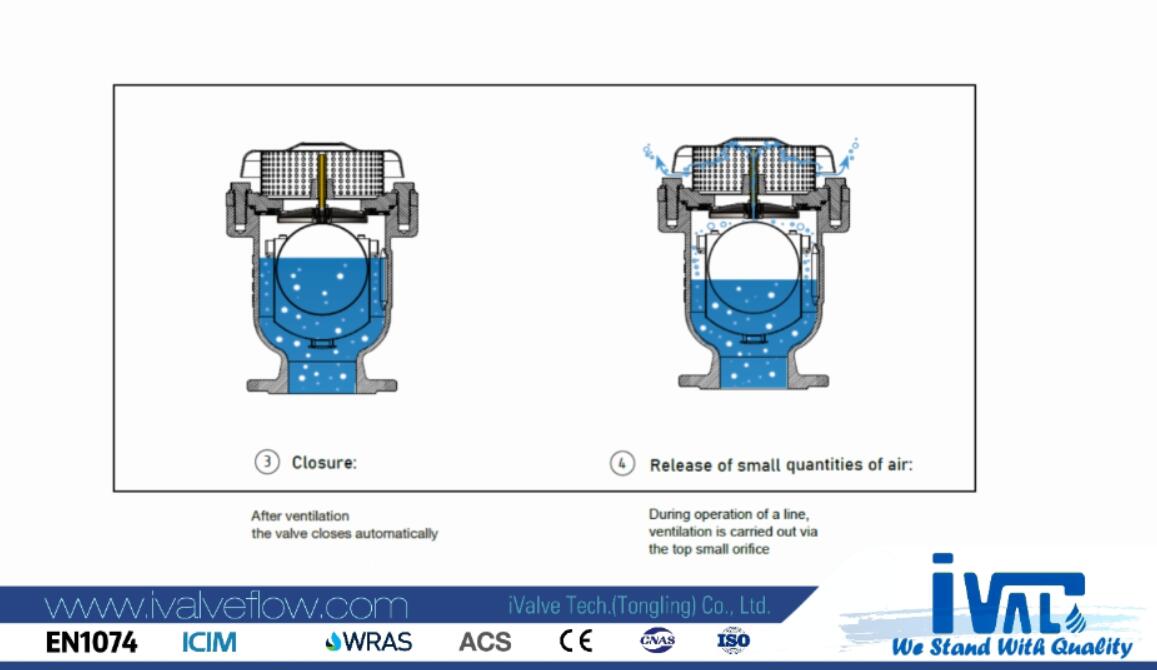

? purge entrapped air from pipeline under pressure

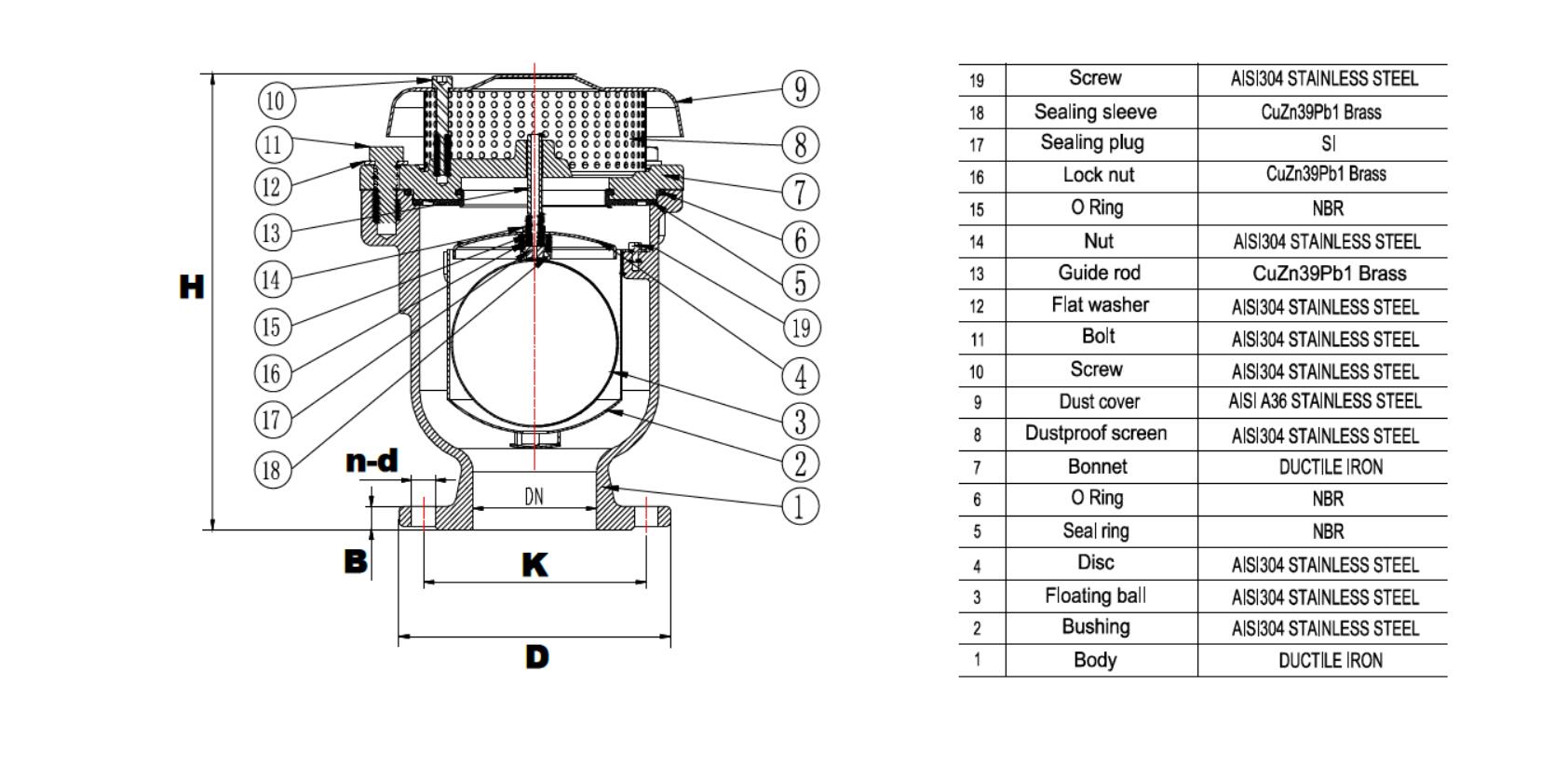

Main Design Features? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?
? Stainless steel float, SS304/SS316
? Anti water hammer system
? Smooth cage outside of the float,
? Anti-insects screen (SS304) keep float moving in specified guide rail.
? Full bore body design
? Inside&outside fusion bond epoxy coating, WRAS approved
? 100% water tightness
? WRAS paint and rubber upon request
? low pressure sealing at 0.2bar
? Optional outlet for submerged applications
Comply Standards? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ??
? Hydrostatic tests to EN-12266-1, class A.
? Designed to EN-1074/4 and AWWA C-512

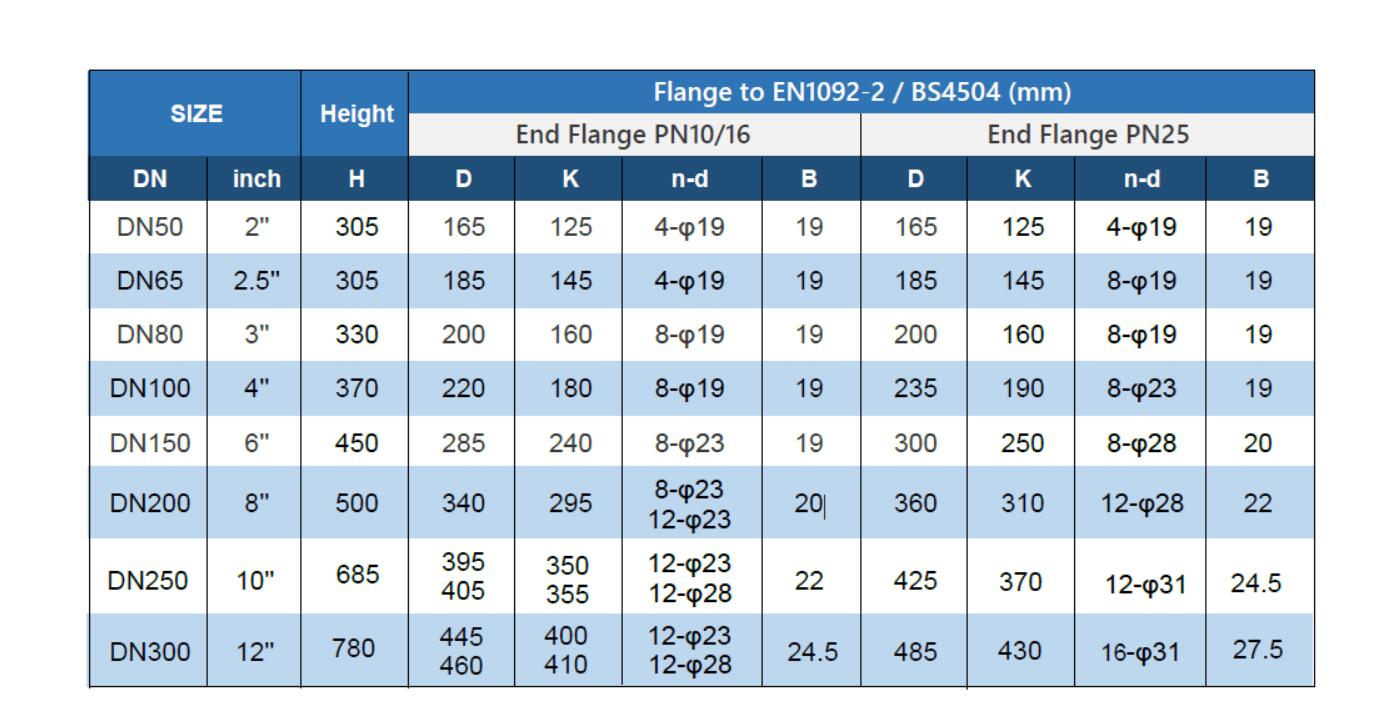

? Flanges to EN-1092/2 or ANSI-150
